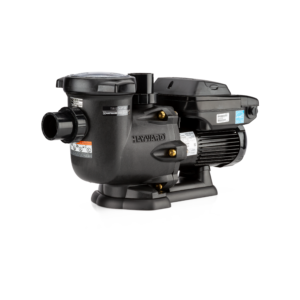

Hayward TriStar Variable Speed Pump
Product Overview
The Hayward TriStar VS is a premium variable-speed pump family designed for medium-to-large residential pools and systems with higher flow demands. The lineup includes the TriStar VS 900 and 950, offering efficient variable-speed operation, quiet TEFC motors, large-capacity strainer baskets, and flexible plumbing compatibility. The VS 900 is rated at 1.85 THP, while the VS 950 increases capacity to 2.70 THP for more demanding applications such as spas, cleaners, and water features. Current X1 models also support advanced scheduling, diagnostics, and Hayward automation integration, making the TriStar VS a strong option for both equipment upgrades and new installations.
Product Family
Evaluation Scope
Evaluation Date
Version/Revision
Overview
Evaluation
Key Strengths
- Excellent hydraulic efficiency. The 900 leads the family in WEF, while the 950 provides stronger high-head flow for spas, cleaners and water features.
- Flexible installation platform. Dual voltage, two base-height options, top-access wiring and included unions make the family adaptable for new installs and retrofits.
- Full-featured controls. Current X1 pumps include scheduling, diagnostics, power monitoring and universal communication, with optional Hayward automation and remote access.
- Strong debris and service design. A large basket, clear lid, replaceable wet-end components, TEFC motor and chemical-resistant seal support demanding residential use.
Key Weaknesses
- Higher purchase and repair cost. TriStar VS sits above simpler VS and XE pumps, and major drive, motor or display failures can make replacement more attractive.
- Hydraulic sizing is critical. The 950 may be excessive for smaller plumbing or simple pools, while very low speeds may not satisfy equipment flow requirements.
- Controls require commissioning. Scheduling, speed limits, priming and communication settings take more setup than a basic pump, and app control requires a gateway.
- Warranty varies by channel. Coverage is strongest through authorized installers, while some online purchases receive shorter parts-only protection and wear items remain excluded.
Review Analysis
Performance
One of the TriStar VS family’s strongest areas. The VS 900 is especially efficient, with a WEF up to 12.9, while the VS 950 adds greater hydraulic capacity for spas, cleaners and water features. Variable-speed operation allows low-energy filtration while retaining strong flow when equipment demand increases.
Excellent
Reliability
The platform uses a TEFC permanent-magnet motor, chemical-resistant Viton seal and proven TriStar wet-end design. Owner reports are generally favorable, including examples of several years of trouble-free operation. The main long-term concern is the variable-speed drive, where internal electronic failures can require replacement of an expensive motor/drive assembly rather than a simple component repair.
Positive
Service History
Routine service issues are familiar to technicians, including priming or suction-air problems, worn shaft seals, O-rings, clogged impellers and bearing-related noise. Variable-speed-specific service can involve overheating, overload, voltage, communication or internal drive faults. Wet-end repairs are generally straightforward, while drive or motor failures are considerably more expensive.
Moderate
Homeowner Feedback
Homeowners commonly praise the TriStar VS for quiet operation, strong circulation, easy retrofit installation and reduced electrical use. Home Depot’s current TriStar VS listing shows a 4.7/5 rating from 19 reviews. Recurring negatives center on the premium purchase price and occasional frustration with programming or setup rather than hydraulic performance.
Positive
Overall Assessment
The TriStar VS is a strong, efficient variable-speed pump with excellent hydraulic performance, quiet operation, and flexible installation options. Its main drawbacks are premium upfront cost, more involved programming, and potentially expensive motor or drive repairs as the system ages.
Final Verdict
A well-rounded choice for homeowners who want strong efficiency, dependable circulation, and flexibility for pools with spas, cleaners, or water features. Proper sizing is important, and buyers should confirm warranty coverage and automation compatibility before installation.
